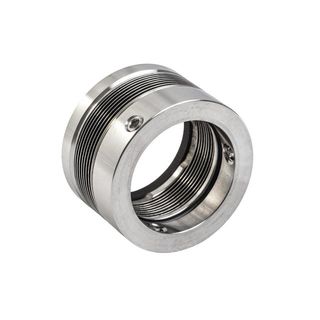

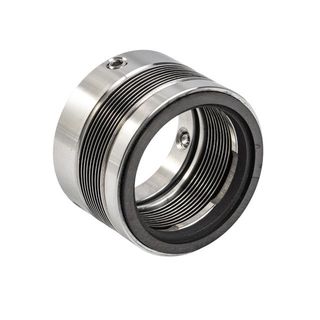

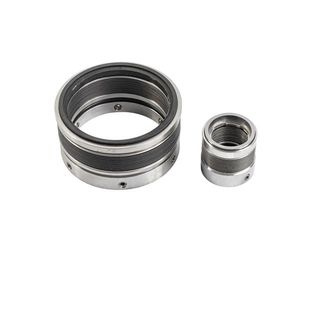

Metal Bellows

Features

• For extreme temperature
• No dynamically loaded O-Ring
• Self cleaning effect
• Short installation length possible
• Pumping screw for highly viscous media available

Specifications

Shaft diameter:
d1 = 16 … 100 mm (0.63" … 4“)
Externally pressurized:
p1 = … 25 bar (363 PSI)
Internally pressurized:
p1 <120 °C (248 °F) 10 bar (145 PSI)
p1 <220 °C (428 °F) 5 bar (72 PSI)
Temperature: t = -40 °C … +220 °C
(-40 °F … 428) °F,
